Product Introduction

Pneumatic Diaphragm Pump features a simple and highly reliable air distribution valve, enabling the entire diaphragm pump series to achieve maximum reliability under various operating conditions.

The air distribution valve adopts a three-way pilot valve design, ensuring true non-sticking operation. All components can be replaced without opening the liquid chamber. Aluminum components are anodized and coated with epoxy resin, providing excellent resistance against corrosion caused by contaminated air.

Application

Pneumatic diaphragm pumps are widely used in:Petrochemical industry，Environmental water treatment，Food processing，Pharmaceutical industry，Paper manufacturing，Daily chemical industry，Chemical fiber and coating industry，Mining industry，Fire protection，Agriculture，Vehicle-mounted applications

Product Features

● The integrated reversing shaft structure ensures excellent concentricity and smoother operation.

● Added air filtration system to ensure reliable operation of the air motor.

● Guide blocks are available in ceramic or stainless steel materials to meet different operating conditions.

● The piston end cover adopts a screw-free design for convenient installation.

● Equipped with an external air motor, making maintenance easier.

● Made of engineering plastics, reducing resource consumption and operating costs. Compared with other diaphragm pumps, it has significantly fewer moving parts.

● One air valve design is suitable for multiple pump sizes.

● 15-year quality warranty for air valves and 5-year quality warranty for pump bodies.

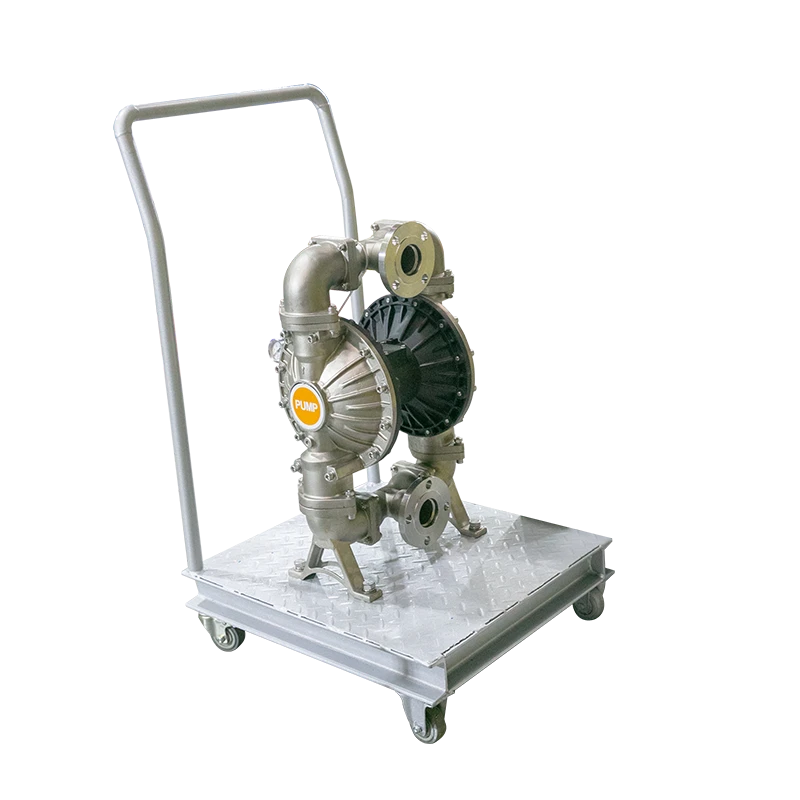

B71Z1276

B71Z3058
