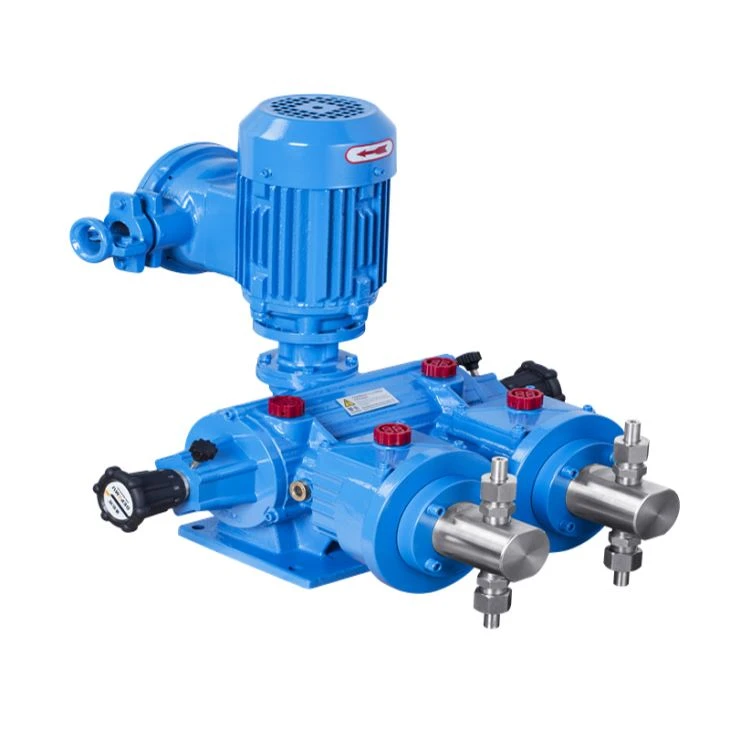

DP(M)TS Series Metering Pump/Dosing Pump

Since the establishment of our company, we have taken the promotion of national industries as our own responsibility and our goal is to become a leading provider of plunger metering pump oil and gas, chemical industry Great-distance Pump products, piston dosing pump oilfield in China. As a commercial entity, keeping its promises and achieving missions is the foundation of long-term development. With the rapid development of the market, our company's production technology continues to progress, products continue to be improved. We always take the realization of customer benefits as the principle, and seek our own development through industrial structure adjustment and upgrading while creating value for customers.

Working Principle

Plunder contacts medium directly. With reciprocation of the plunger,volume of working chamwer is changed cyclically, so as to such in and discharge the medium.

Features

? Adopt patented stuffing with superior sealing performance and long service life;

? Iblet and outlet check valve uses high-accuracy ball valve with strong corrosion resistance and linear sealing,in order to ensure metering accuracy;

? Diameter of the plunger is D=2~150mm;

? Simple structure,convenient maintenance,high cost performance.

? Integrated "Oude" worm gear pair boasts low noise and high efficiency;

? It makes use of excellent integrated sleeve adjustable eccentric transmission mechanism,which is simple and reliable,and is capable of 0-100% stepless adjustment of flow rate;metering accuracy is ±1%(10%-100%) adjustment range

? Oil-immersed type lubrication ensures that transmissioon components can be usedreliably for a long period;

? Adjustment mode of flow rate is diversified;manual,electrial,peneumatic or frequency conversion;

? With electric actuator,remote automatic control is realized;

? Two heads or multiple heads(12 heads at most)can be in parallel connection; multiple pump heads can transport the same medium to reduce pulse or multiple media,to be used as a proportional pump.

? Since there is no safe relief device,it is suggested that a relief valve should be installed on outlet pipeline of the pump.

Technical Parameters

? Flow rate range of single pump head: =12100L/H

? Pressure range: =95MPa

Material Selection

Pump head can be made of 304, 316, 316L, 904 and Hastellot C etc.

Application Scope

It is widely used in fields such as chemical,petrochemical,natural gas,oil and gas field,foaming,electricity and metallurgy etc.In particulatr,it is very popular with process flow of liquid media with high viscosity,high pressure and high pressure.

Meanwhile, our organization staffs a group of experts devoted for DP(M)TS Series Metering Pump/Dosing Pump. We are constantly enriching our product structure and perfecting related product packages. We are surely win the customer's satisfaction with our superb quality, competitive price, excellent service and credibility.
