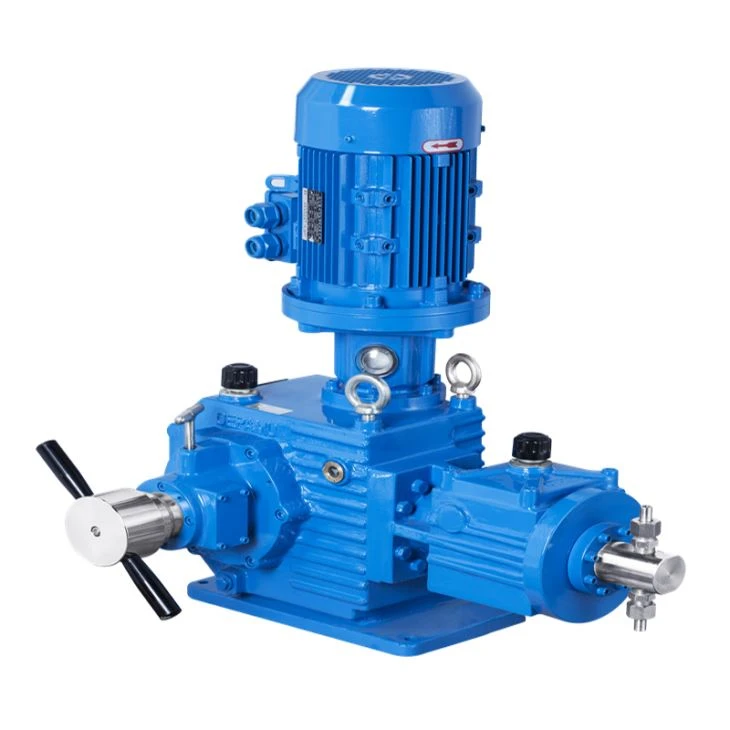

Plunger-type Metering Pump DPXA

Plunger-type Metering Pump DPXA

Working Principle Plunder contacts medium directly. With reciprocation of the plunger,volume of working chamwer is changed cyclically, so as to such in and discharge the medium. Features ? Adopt patented stuffing with superior sealing performance and long service life; ? Iblet and outlet check...

Send Inquiry

Product Details

Working Principle

Plunder contacts medium directly. With reciprocation of the plunger,volume of working chamwer is changed cyclically, so as to such in and discharge the medium.

Features

? Adopt patented stuffing with superior sealing performance and long service life;

? Iblet and outlet check valve uses high-accuracy ball valve with strong corrosion resistance and linear sealing,in order to ensure metering accuracy;

? Diameter of the plunger is D=2~150mm;

? Simple structure,convenient maintenance,high cost performance.

? Integrated "Oude" worm gear pair boasts low noise and high efficiency;

? It makes use of excellent integrated sleeve adjustable eccentric transmission mechanism,which is simple and reliable,and is capable of 0-100% stepless adjustment of flow rate;metering accuracy is ±1%(10%-100%) adjustment range

? Oil-immersed type lubrication ensures that transmissioon components can be usedreliably for a long period;

? Adjustment mode of flow rate is diversified;manual,electrial,peneumatic or frequency conversion;

? With electric actuator,remote automatic control is realized;

? Two heads or multiple heads(12 heads at most)can be in parallel connection; multiple pump heads can transport the same medium to reduce pulse or multiple media,to be used as a proportional pump.

? Since there is no safe relief device,it is suggested that a relief valve should be installed on outlet pipeline of the pump.

Technical Parameters

? Flow rate range of single pump head: =12100L/H

? Pressure range: =95MPa

Material Selection

Pump head can be made of 304, 316, 316L, 904 and Hastellot C etc.

Application Scope

It is widely used in fields such as chemical,petrochemical,natural gas,oil and gas field,foaming,electricity and metallurgy etc.In particulatr,it is very popular with process flow of liquid media with high viscosity,high pressure and high pressure.

ModelFlow rate
     L/H
Motor PowerPlunger diameter
     ?mm
0.75KW1.5KW
Discharge pressure Mpa
DPXA7.5/32/667.5326610
DPXA10/26/5010265012
DPXA18/15/2718152715
DPXA35/8/143581420
DPXA55/5/9555925
DPXA82/3.2/6823.2630
DPXA110/2.5/4.51102.54.535
DPXA145/1.9/3.41451.93.440
DPXA185/1.5/2.71851.52.745
DPXA230/1.2/2.12301.22.150
DPXA270/1/1.8527011.8555
DPXA325/0.85/1.53250.851.560
DPXA385/0.75/1.33850.751.365
DPXA450/0.56/1.14500.561.170
DPXA500/0.55/15000.55175
DPXA600/0.5/0.86000.50.865(3)
DPXA700/0.4/0.77000.40.770(3)
DPXA810/0.3/0.68100.30.675(3)

DEPAMU is one of the leading Plunger-type Metering Pump manufacturers and suppliers, with professional factory we are able to produce Chinese best plunger-type metering pump dpxa at both low price and good quality. If you are looking for Gemany technology or famous brand plunger-type metering pump dpxa, please feel free to contact us.
